In the field of precision manufacturing, the deep hole drilling technology of twist drills plays a crucial role and is widely applied in key areas such as precision components of automotive engines and core components of aerospace. However, this seemingly simple drilling process conceals many technical difficulties, especially the two major problems of uneven distribution of cutting fluid and difficulty in removing chips , which directly affect the drilling quality and machining efficiency. This article will deeply analyze the causes, impacts and latest solutions of these two major technical challenges, providing professional and practical technical references for practitioners in the lubrication industry and upstream and downstream customers.

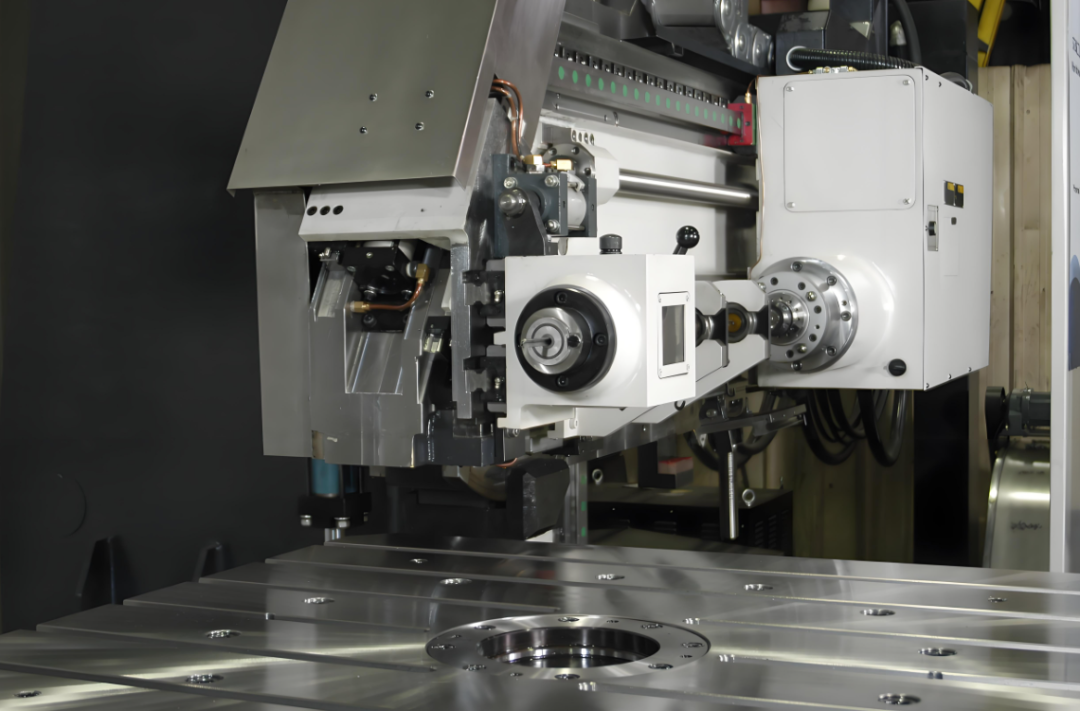

Cutting fluid: The "Invisible Guardian" of Deep Hole Drilling
Three core functions analysis cutting fluid plays an irreplaceable role in TWIST drill deep hole drilling, can be called the "lifeline" of the machining process: Cooling function : In high-speed drilling, the heat generated by the friction between the tool and the workpiece can reach 600-1000℃, if not cooled in time, the tool will quickly soften and fail. High-quality cutting fluid can carry away more than 80% of the cutting heat, keeping the tool tip temperature within a safe range.
Lubrication function : When drilling, the contact surface pressure can reach above 3GPa, the nano-scale lubricating film formed by the cutting fluid can reduce the coefficient of friction by 30-50%, significantly reduce tool wear and improve hole surface finish.
Cleaning function : CAN produce several meters of continuous chips per minute, the flushing effect of cutting fluid can prevent chip accumulation, avoid more than 50% of drill bit breakage accidents.
Unevenly distributed technical pain points
Due to the limitations of the deep hole structure, there is a serious uneven distribution problem of cutting fluid:
Dead zone phenomenon : When the hole depth exceeds 5 times the diameter, the bottom cutting fluid flow rate may drop to less than 10% of the surface, creating a cooling blind zone. Pressure decay : The cutting fluid pressure of the internally cooled drill bit drops by 60-80% from the inlet to the drill tip, seriously affecting lubrication. Viscosity effect : High viscosity cutting fluid (>50cSt) has poor fluidity in deep holes, but low viscosity (<10cSt) may cause insufficient lubrication.
Chip removal: The key to the quality of deep hole machining
The complex mechanism of chip transfer. In the deep hole processing of twist drills, chips need to pass through the tiny gap of 0.1-0.3mm between the tool and the hole wall to be discharged. This process faces multiple challenges:
Chip formation : Steel parts tend to produce helical chips up to several meters long, while stainless steel parts tend to produce tough strip-shaped chips, increasing the risk of clogging by 30%. Chip removal channel : For every 1mm reduction in hole diameter, chip removal resistance increases by approximately 15%; when the aspect ratio is greater than 10, the probability of chip accumulation increases exponentially. Cutting fluid effect : Chip removal efficiency drops sharply when flow is below 2L/min, but above 5L/min may cause splashing and waste.
In response to the challenge of chip removal, the industry has developed a variety of innovative solutions:
Group drilling technology : With a unique "three-pointed seven-edge" design, axial force is reduced by 35-50%, torque by 10-30%, and chip length is shortened by more than 70%. After a certain aviation component manufacturer adopted group drilling, the processing efficiency increased by 3 to 5 times and the tool life was extended by 2 to 3 times.
Vibration-assisted drilling : Superimpose mechanical vibration of 10-100Hz to break chips into smaller pieces. A hydraulic actuator processing case shows an efficiency increase of 7.5 times.
Intelligent monitoring system : Real-time monitoring of cutting status based on AI, early warning 30 seconds before chip clogging occurs, avoiding over 90% of unplanned shutdowns.
Frontier Technology: A New Era of Simulation and Optimization
Multi-physics field simulation technology. Modern simulation technology provides a brand-new perspective for the research of cutting fluids and chips:
SPH-DEM coupled simulation : To accurately reproduce the interaction between cutting fluid particles and chips, a titanium alloy machining study reduced turbulence intensity by 40% through simulation optimization.
CFD Flow Analysis : Revealing the true flow state of cutting fluid in the drilling zone in a case where the dead zone area was reduced by 65% by improving the jet Angle.
Ai-enhanced Simulation : Machine learning algorithms reduce CFD computing time from hours to minutes, with prediction accuracy maintained at over 98%.
The Parameter Optimization Practice Guide, based on the latest research results, recommends the following cutting fluid parameter optimization strategies:
Automobile engine processing : Viscosity: 15-25 CST flow rate: 3-4L/min Spray Angle: 15-20° Concentration: 8-12%
Aerospace titanium alloy : Viscosity: 25-35 CST flow rate: 4-5L/min pressure: 0.5-0.8MPa Extreme pressure additive content: ≥5%
Note: The actual parameters need to be adjusted according to the specific working conditions. It is recommended to conduct a small-scale test verification first.
Application case: From the laboratory to the production line
A well-known automotive manufacturer is facing the following challenges in the deep hole processing of engine blocks: The hole diameter is Φ8mm, the depth is 120mm(length-to-diameter ratio 15), the tool life is only 50, and the chip blockage rate of the holes is as high as 20%
By implementing a comprehensive optimization plan: switching to a group drilling structure, the axial force was reduced by 42%, the cutting fluid was adjusted to 22cSt synthetic ester, the flow rate was 3.8L/min, and the axial vibration was increased by 20Hz
Remarkable achievements have been made: tool life has been increased to 220 holes, processing efficiency has been raised by 2.3 times, and the scrap rate has been reduced to less than 1%. Innovation in aero engine blades
The original processing technology for the cooling holes of turbine blades in a certain aviation enterprise: Material: Nickel-based superalloy, hole diameter Φ6mm, depth 80mm. The traditional process takes 45 minutes for a single hole
Adopting a new technical route: AI-optimized CFD simulation to determine the optimal cutting fluid parameters, nanoparticle enhanced cutting fluid formula, and electromagnetic vibration assistance (100Hz, 50μm)
Achievements: The processing time was shortened to 12 minutes per hole, the hole diameter accuracy was improved to ±0.01mm, and the tool cost was reduced by 60%
Future Outlook and Technological Trends: Deep hole processing technology is developing towards intelligence and greenness:
Digital Twin technology : Real-time mapping of machining process, prediction of tool remaining life, accuracy up to 95%. Adaptive cutting fluid : Viscosity can be automatically adjusted with temperature/pressure, a laboratory sample has achieved dynamic range of 20-50 CST. Carbon neutral solutions : Biodegradable cutting fluid share will increase from 15% in 2025 to 40% in 2030. AI full-process optimization : Intelligent decision-making from cutting parameter selection to fault prediction is expected to increase overall efficiency by 30-50%.
The distribution of cutting fluid and chip removal in deep hole drilling with twist drills is an integrated technology that combines fluid mechanics, materials science and mechanical engineering. By understanding the basic principles, mastering optimization methods and drawing on successful cases, enterprises can significantly improve processing efficiency and reduce production costs while ensuring quality. With the in-depth application of simulation technology and artificial intelligence, this traditional processing field is radiating new vitality and opening up more possibilities for precision manufacturing.
